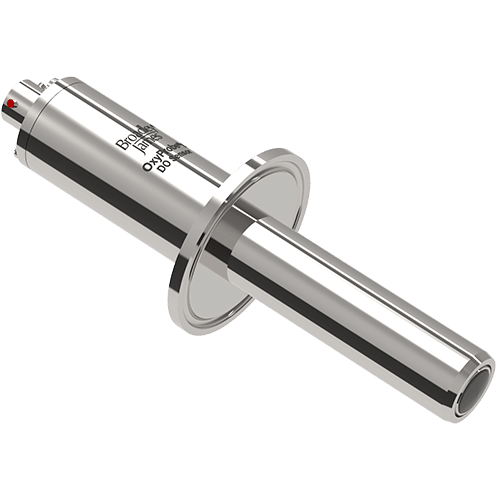

These sensors are unique in their construction. The front end of the sensor is the same as the 19 mm sensor, with the smaller diameter and no crevices or o-rings. It fits directly into a 1.5” sanitary pipe tee, eliminating the need for a housing, reducing contamination risks. Designed with an integral 1.5” sanitary flange, a gasket seal at the flange holds the sensor securely in place.

Get Quote / More Info

This 19mm Dissolved Oxygen Sensor is for use in Novaseptic installations and in 1.5″ sanitary tees. It is important to note, these sensors are not intended for use with the standard 25 mm sanitary flange ports. However, they can be used with the NovAseptic ports.

The interior design and replacement parts of this sensor are the same as other 25 mm OxyProbes. The modular design allows quick replacement of any part, making it easy to maintain and repair the sensor. OxyProbe dissolved oxygen sensors carry a 1-year warranty.

This sensor is also available with right-angled connector as D215.

Features

  • 316L Stainless Steel
  • Serialised for traceability
  • RA32 finish with electropolish on wetted parts

Additional Features

  • Fits in both sanitary flange ports and NovAseptic ports.
  • Can also be used in-line in a sanitary pipe tee.

It is important to maintain the sensors by inspecting and calibrating them regularly. The membrane cartridge should be checked and refilled prior to every use.

All OxyProbe dissolved oxygen sensors are available in both straight and right-angled connector versions. This low profile design provides:

  • Protection against cable fatigue
  • Improved grip for sensor extraction
  • Reduced random sensor mobility on flat surfaces (won’t roll off the table)

D210 (19mm) Dissolved Oxygen Sensor Specification

  • Measurement principal: Amperometric – Polarographic
  • Output signal in air: Approx. 67 nA at 25°C
  • Temperature range: Operation: 0 to 80°C
    Sterilisation: Max. 135°C
  • Stability: Better than 2% of readout per week at constant pressure and temp. (30°C)
  • Maximum Pressure: 4 bar (atm.), 58 psig

The Models D210 Series Dissolved Oxygen OxyProbe sensors are intended for use in a 1 1/2” sanitary pipe tee. The sensor is secured into the tee with a standard flange clamp sealed with a flange gasket. The tip of the sensor is positioned in the middle of the process flow when it is placed in a standard size tee. These sensors can also be used in NovAseptic ports.

DO-tee-2

The Model D210 or D215 sensor installed in a NA-connect® port offers potential benefits in biotech applications. The unique design of the port offers increased drainage around the port and most effective Clean-In-Place (CIP). This port, which is almost flush to the vessel wall, allows the use of a 19 mm sensor front end, since there is no need for a forward o-ring to seal the sensor into the vessel. Minimizing or eliminating the cracks or crevices improves cleanability.

Sometimes found on vessels in biotech facilities, this style of port is flush to the vessel wall to minimize crevices. The unique design of the port offers increased drainage around the port and more effective Clean-In-Place (CIP). The NA-connect® port from NovAseptic is compatible with a special sanitary housing, which is secured to the port by a clamp. The port is installed at a 15° angle to allow for proper electrode performance. See the cutaway drawing to the right for typical installation dimensions.

novaseptic-port

NovA-in-port1

d215-nova-installed

Membrane Kits

Broadley-James offer a range of membrane kits to suit all our dissolved oxygen sensors. These include everything required to replace the membrane cartridge and internal o-rings. All kits include:

  • QC Certificate
  • Material Cert

The following membrane kits are suitable for use with the D210 (19mm) Dissolved Oxygen Sensor with 1.5″ Sanitary Flange:

Membrane Kit Example Image Kit Contents
Single cartridge kit for 19 & 25 mm DO Sensors

Part No. KC2501

DO sensor 25mm single membrane kit One 25 ml bottle of electrolyteOne membrane cartridgeOne set of internal o-rings
Four cartridge kit for 19 & 25mm DO Sensors

Part No. KC2504

DO sensor 25mm 4 membrane kit One 25 ml bottle of electrolyteFour membrane cartridgesFour set of internal o-rings
25 Piece cartridge kit for 19 & 25mm DO Sensors

Part No. KC2525

 25mm-25piece 25 membrane cartridges in one easy-to-store box.Internal o-rings, gaskets and electrolyte must be ordered separately.

Compatible Cables

The D210 (19mm) Dissolved Oxygen Sensor with 1.5″ Sanitary Flange is available in both VarioPin and standard D9 connector versions. We recommend the following cables for use with the D210 (19mm) Dissolved Oxygen Sensor:

VarioPin:

Cable Type Sensor Connector & Device Connector Device Terminal
VP plug to Ferrules variopin_cable-ferrules-m terminal-block

D9 Connector:

Cable Type Sensor connector & Device Connector Device Terminal
D4 plug to Lemo 6 lemo6-d lemo6
DO Cable D4 to Crimped Ferrules crimp-d
