ProcessProbe® Dissolved Oxygen Sensor

Name: ProcessProbe® Dissolved Oxygen Sensor
SKU: 550

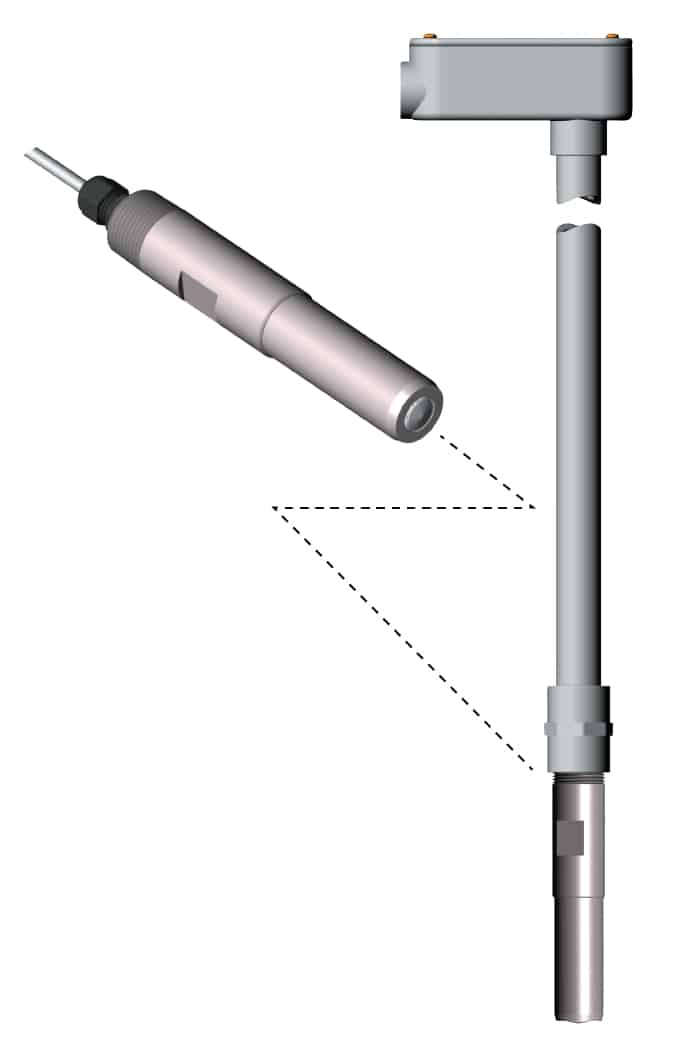

The ProcessProbe^® DO sensor has been designed for use in any process streams or wastewater application. The body is machined from CPVC with integral 3/4″ NPT threads for easy installation. It also has a built-in thermistor for automatic temperature compensation. The dual-layer membrane is reinforced with stainless steel mesh. This mesh helps the membrane resist damage from particulates in the process stream, extending the longevity of the sensor. The modular design of the membrane assembly makes regular maintenance simple and fast.

Categories: ProcessProbes, Waste Water

Get Quote / More Info

Description

Application

Submersion

Specification

Temperature Range: 0–80ºC

Maximum Pressure: 58 psig, 4 bar (atm)

Response Time: 98% in 60 seconds at 25ºC

Sensor Body: cPVC

Membrane: PTFE/Silicone reinforced with stainless steel mesh

O-ring Seals: Silicone rubber

Flow Dependence: Readings in stirred and unstirred solutions differ by approximately 3-5 percent

Temperature Compensation: Automatic with built-in thermistor, 22K Ohms at 25ºC

Wetted Materials: cPVC, 316L stainless steel, Silicone

Standard Cable Length: 10 ft – Optional lengths available

Model: E-1733-SAM-D10FF
