Cable Selection Guide

t-pull cable connection

T-Pull

  • This FermProbe® style features a standard S8 detachable cable connection on a metric Pg13.5 threaded polymer cap, which allows the electrode to be used with European style electrode housings.
  • The standard metric cap is a newer autoclavable design that protects the connector pin from breakage.
  • The design requires the rotation of the electrode during installation.

standard S8 Metric Cap pH-connector

Standard S8 Metric Cap (pH/Redox)

  • This FermProbe® style features a standard S8 detachable cable connection on a metric Pg13.5 threaded polymer cap, which allows the electrode to be used with European style electrode housings.
  • The standard metric cap is a newer autoclavable design that protects the connector pin from breakage.
  • The design requires the rotation of the electrode during installation.

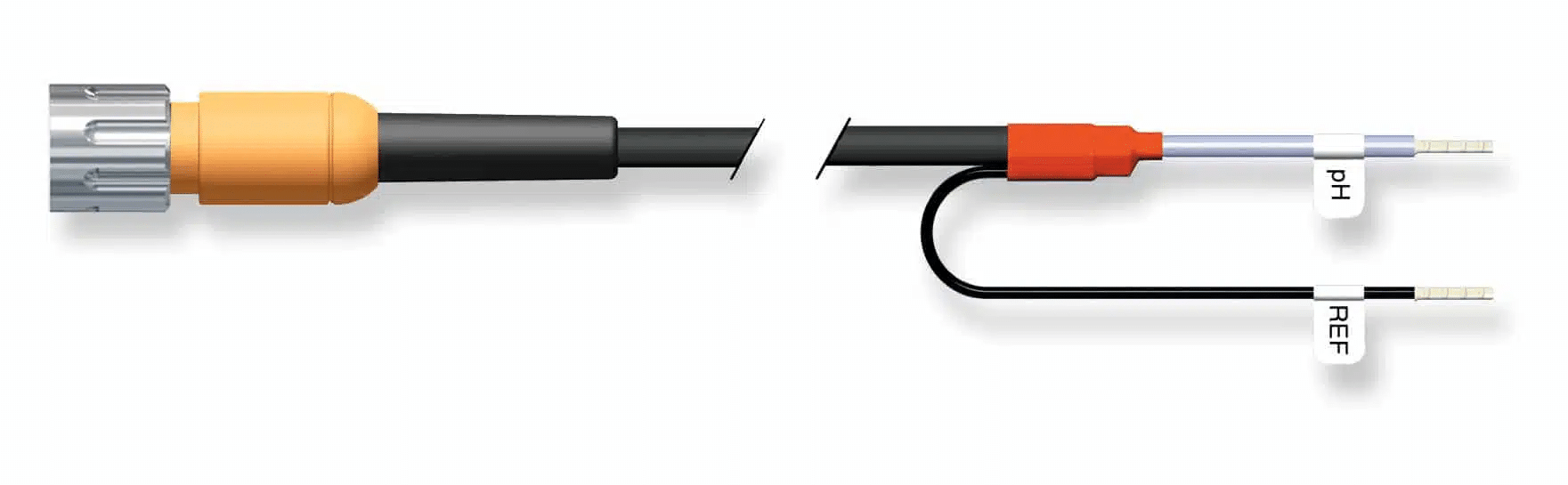

K9 Metric cap PH/Redox connector

K9 Metric Cap (pH/Redox)

  • The original K9 autoclavable cap design is still used in many existing bioprocess systems.
  • This FermProbe® style features a K9 detachable cable connection on a metric Pg13.5 threaded polymer cap, which allows the electrode to be used with European style electrode housings.
  • The design requires the rotation of the electrode during installation.
Cable Type Sensor Connector & Device Connector Device Terminal
KP plug to BNC, Type M KP plug to BNC, Type M sensor connector KP Plug to BNC, Type M device terminal
KP plug to DIN, Type M KP Plug to DIN, Type M sensor connector KP Plug to DIN, Type M device terminal
KP plug to Ferrules, Solution Ground, Type N KP Plug to Ferrules, Solution Ground, Type N sensor connector KP Plug to Ferrules, Solution Ground, Type N device terminal

Variopin-connector-pH

Variopin Connector (pH)

  • This multifunctional electrode is capable of both receiving and processing a number of signals at the same time.
  • The Variopin (VP) connector allows simultaneous pH and temperature readings.
  • VP plug is completely watertight in unconnected condition.
  • High temperature resistance through the use of PEEK material.
Cable Type Sensor Connector & Device Connector Device Terminal
VP plug to Ferrules VP plug to Ferrules sensor connector VP plug to Ferrules device terminal

D4 connector

D4 Connector (DO)

  • Industry standard 4-pin connector. Hermetically sealed, gold plated contacts in a glass insulator offer the ultimate in signal isolation and transmission.
  • Less expensive molded plastic connectors are not used.
  • This industry standard connector was the first, and is still, the best choice for DO sensors.
Cable Type Sensor connector & Device Connector Device Terminal
D4 plug to Lemo 6 D4 plug to Lemo 6 sensor connector D4 plug to Lemo 6 device terminal

DO Cable D4 to Crimped Ferrules

DO Cable D4 to Crimped Ferrules sensor connector DO Cable D4 to Crimped Ferrules device terminal

Variopin connector DO

Variopin Connector (DO)

  • This multifunctional electrode is capable of both receiving and processing a number of signals at the same time.
  • The Variopin (VP) connector allows simultaneous pH and temperature readings.
  • VP plug is completely watertight in unconnected condition.
  • High temperature resistance through the use of PEEK material.
Cable Type Sensor Connector & Device Connector Device Terminal
VP plug to Ferrules VP plug to Ferrules sensor connector VP plug to Ferrules device terminal
